Falcon 105 Vario

The Falcon Spider Atrium Lift Falcon 105 Vario

The ultimate compact platform.


The Falcon Spider Atrium Lift is an original Falcon Spider Lift with market leading features. The Falcon Spider Atrium Lift Falcon 105 Vario was invented at first in the 1970’s, and developed ever since. The Falcon Spider Atrium Lift Falcon 105 Vario is very applicable in matters of:



  • Facility management
  • Atrium access
  • Narrow access
  • Best quality & safety
  • Double jib system
  • Easy transport & propelling
  • Low weight & ground pressure
  • Need for flexible outrigger
  • Limited setup space
  • Power
  • Bi-energy Hybrid



The Falcon Spider Atrium Lift is capable of passing through a door opening a mere 4ft. 1in. wide and 6ft. high. Further details on The Falcon Spider Atrium Lift Falcon 105 Vario is mentioned below, or you can click to download the full datasheet on this page also.

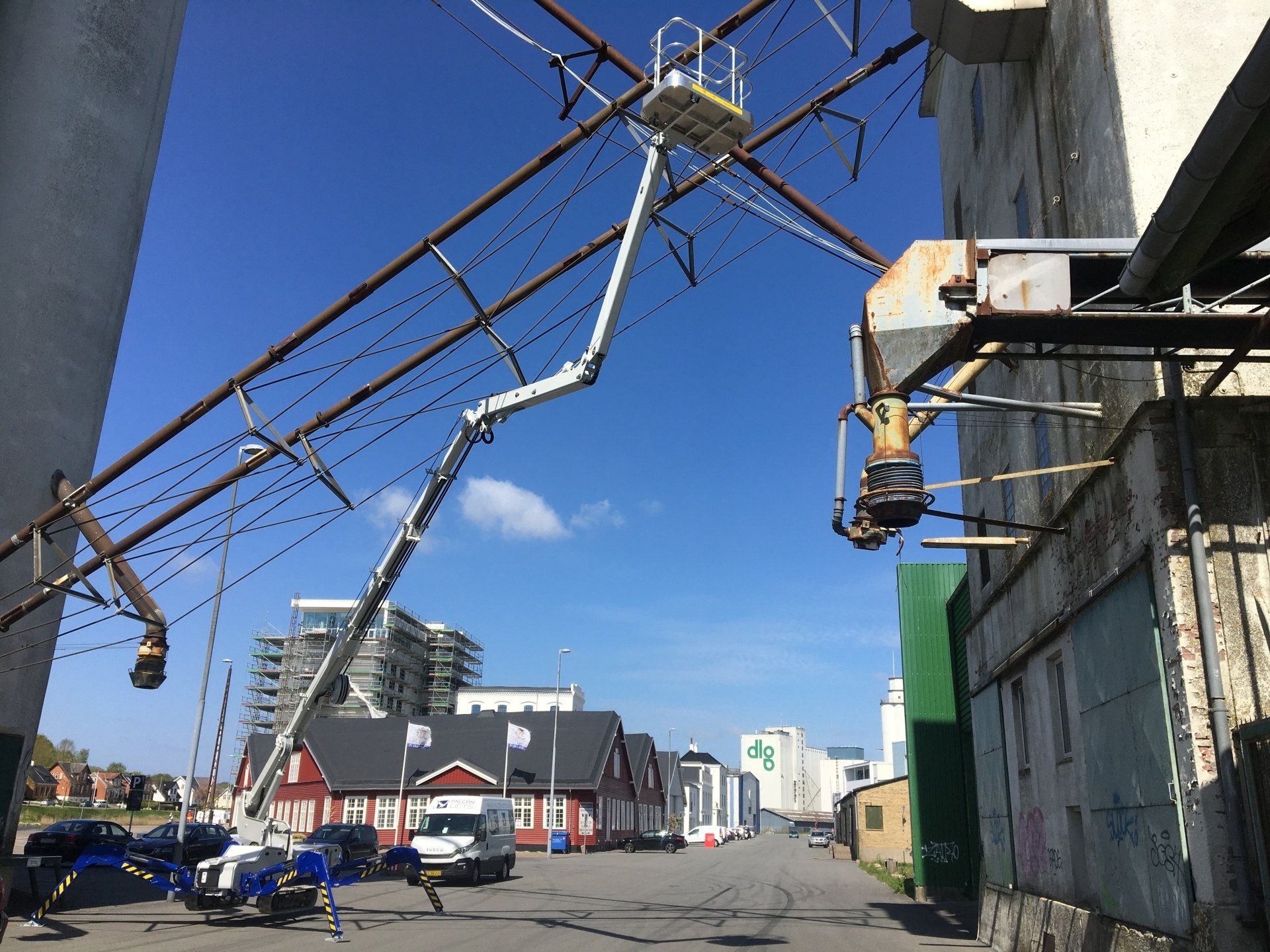

A crane with a ladder on top of it is in the middle of a street

Falcon 105 Vario details

Model: Falcon 105 Vario
Working height: 105 ft
Maximum reach: 50 ft
Linkarm (6.5 x 10ft): 20 ft
Double linkarm: 200°
Basket load: 440lb
Basket rotation: +/- 90°
Turret rotation: 375°
Dimensions (transport position)
Model: Falcon 105 Vario
Total height: 10 ft
Total length: 24 ft
Total width: 4'1" - 5'2"
Gradability (standard): 20° / 37%
Weight approx.: 12235 lb

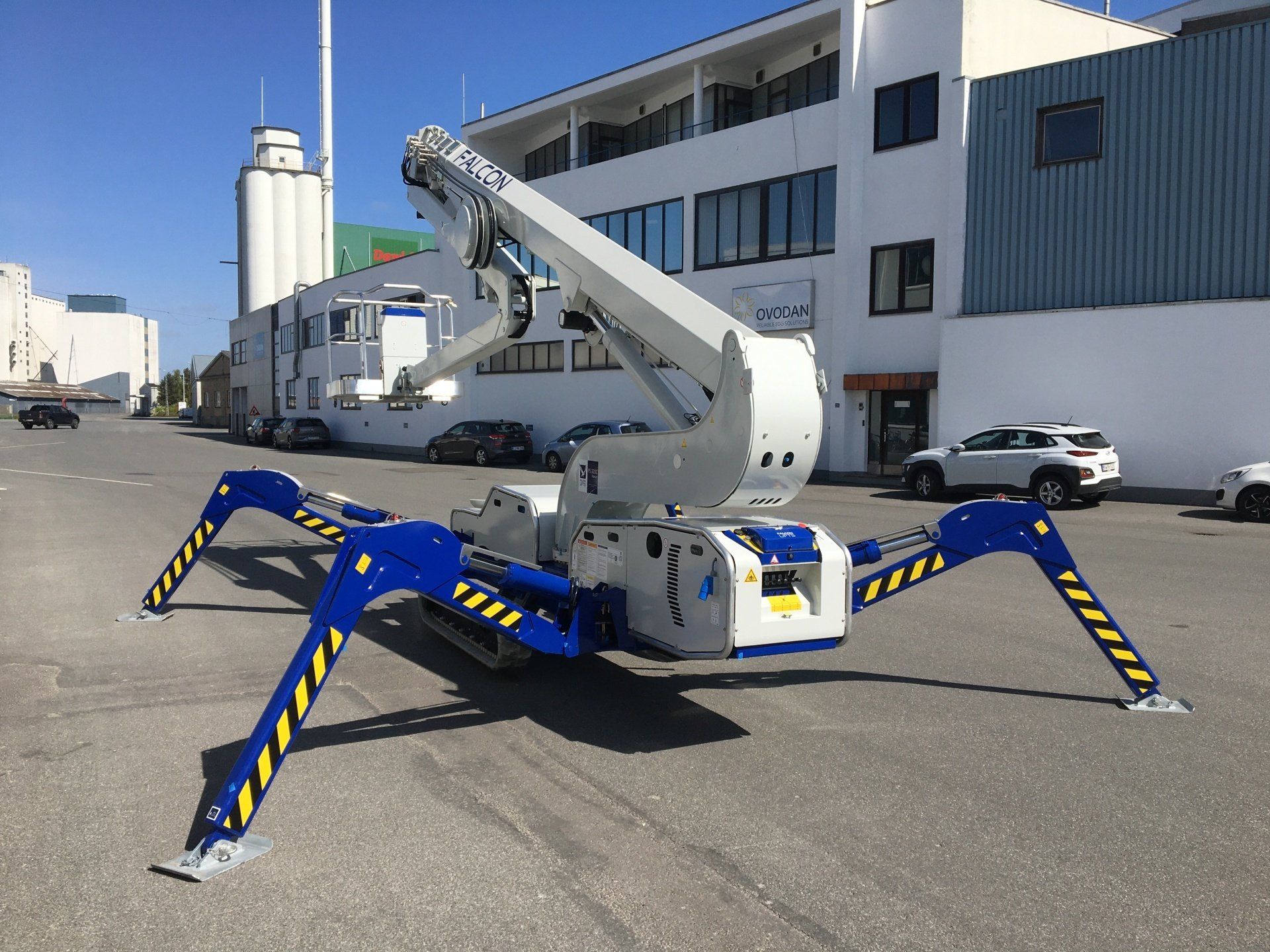

A blue and white spider lift is parked in front of a building.

Falcon 105 Vario equipment

Standard equipment:



  • Access through 4ft. 1in. wide x 6ft. high door openings
  • Automatic safety and stability system ensures optimum outreach and maximum safety
  • Multi-positioning outriggers allow for individual adjustment and setting of each outrigger in both horizontal and vertical positions
  • Full hydraulic 200º double jib 20ft. Arm system with individual movement of both jibs
  • Self-propelled electro hydraulic drive system, operational from the basket
  • Working height, up to 105ft. In minutes and 380º turret rotation, with integrated stop
  • Due to its unique outrigger design, the Falcon 105 Vario can self-load on trucks or trailers
  • Proportional control of all functions via joysticks
  • Electronic supervision of the power system simplifies trouble-shooting errors and minimizes breakdowns
  • Manual pump system for lowering of the basket in case of emergency
  • 110V chargeable battery power system



Options:
  • Automatic outrigger set up
  • Chassis control from basket (wheel based version only)
  • 360º continuous turret rotation
  • Two wheel drive with hydraulic brake system (wheel based)
  • Three wheel drive with hydraulic brake system (wheel based)
  • Twin wheels (additional quick lock set of wheels)
  • Outrigger with flexible knee joint
  • Narrow outrigger setting (8.4ft)
  • 110V AC power supply in the basket
  • Inter communication system between turret and basket (Storno)
  • Air/ water supply in basket (one hose)
  • Air/ water supply in basket (two hoses)
  • Anemometer, wind warning system
  • Sensor System on Basket
  • Height control switch
