The Falcon Spider Atrium Lift Falcon 121 Wheel/Falcon 138 Wheel

The ultimate compact platform


The Falcon Spider Atrium Lift Falcon 121 Wheel/ Falcon 138 Wheel is an original Falcon Spider Lift with market leading features. These Falcon Spider Atrium Lifts have a 121-138 ft working height, and is available with both wheels and tracks. The Falcon Spider Atrium Lift was originally invented at first in the 1970’s, and developed ever since. The Falcon Spider Atrium Lift Falcon 121 Wheel/ Falcon 138 Wheel is very applicable in matters of:



  • Facility management
  • Atrium access
  • Narrow access
  • Best quality & safety
  • Double jib system
  • Easy transport & propelling
  • Low weight & ground pressure
  • Need for flexible outrigger
  • Limited setup space
  • Power – Bi-energy Hybrid



The Falcon Spider Atrium Lift is capable of passing through a door opening a mere 3ft wide and 6.5ft high. Further details on The Falcon Spider Atrium Lift Falcon 121 Wheel/ Falcon 138 Wheel is mentioned below.

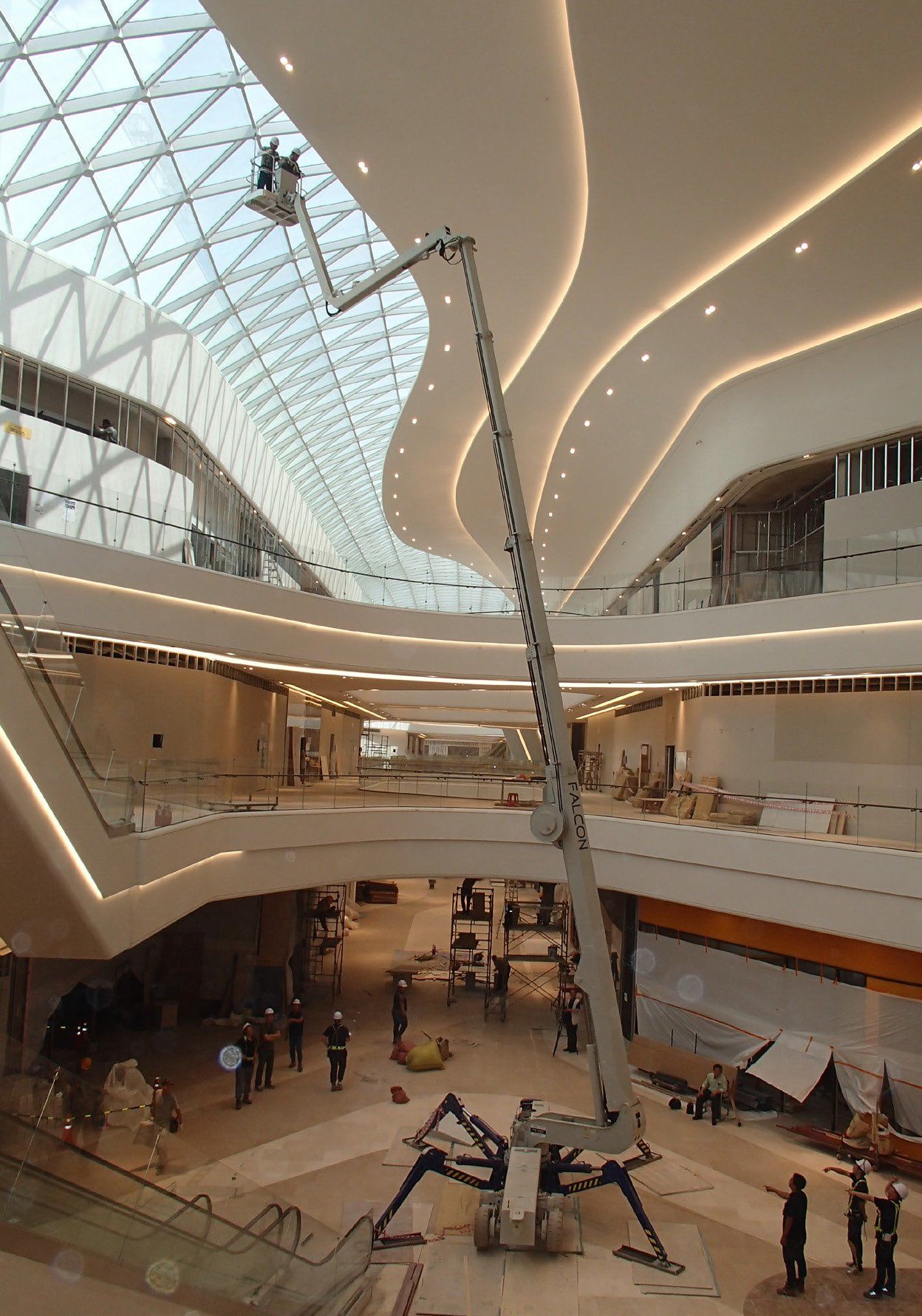

A large building under construction with a spider on the floor.

Falcon 121 Wheel/ Falcon 138 Wheel

Model: Falcon 121 Wheel Falcon 138 Wheel
Working height: 121ft 138ft
Maximum reach: 52-55ft 52-55ft
Linkarm (6.5 x 10ft): 20ft 20ft
Double linkarm: 200° 200°
Basket load: 440lb 440lb
Basket rotation: +/- 90° +/- 90°
Turret rotation: 375° 375°
Dimensions (transport position)
Model: Falcon 121 Wheel Falcon 138 Wheel
Total height: 6.5ft 6.5ft
Total length: 27ft 27ft
Total width: 3ft 3ft
Gradability (standard): 10°/20% 10°/20%
Weight approx.: 15650lbs 16975lbs

Falcon 121 Wheel/ Falcon 138 Wheel equipment

Standard equipment:



  • Access through a single standard doorway
  • Automatic safety and stability system ensures optimum outreach and maximum safety
  • Multi-positioning outriggers allow for individual adjustment and setting of each outrigger in both horizontal and vertical positions
  • Full hydraulic 200º double jib 20ft. Arm system with individual movement of both jibs
  • Self-propelled electro hydraulic drive system, operational from the basket
  • Individual setting of outriggers
  • Adjustable wheel axle
  • 2 person basket
  • Working height, up to 121ft. In minutes and 375º turret rotation, with integrated stop
  • Due to its unique outrigger design, the Falcon 121 Wheel can self-load on trucks or trailers
  • Proportional control of all functions via joysticks
  • Electronic supervision of the power system simplifies trouble-shooting errors and minimizes breakdowns
  • Manual pump system for lowering of the basket in case of emergency
  • 110V chargeable battery power system with charger
  • Space for tools etc. in basket
  • Storage room in chassis with lock
  • 4 wheel drive
  • Dual axle (reduces ground pressure)



Options:
  • 180 degree (+/- 90 degree) basket rotation
  • 110V AC power to the basket
  • Air/water to the basket
  • Distance sensor on the basket
  • Wind sensor on the basket
  • Lombardini diesel engine
  • Honda gasoline generator
  • Extra batteries
  • Autosetting/leveling from basket
  • Chassis control from the basket
  • Sliding boxes for outriggers
  • Special color
  • Height control switch
  • Extra narrow outrigger setting (8ft 5in)
  • Baskets in various sizes
  • Slope alarm
  • Main boom raised max 6ft while driving
