Falcon 125XL Vario

The Falcon Spider Atrium Lift Falcon 125XL Vario

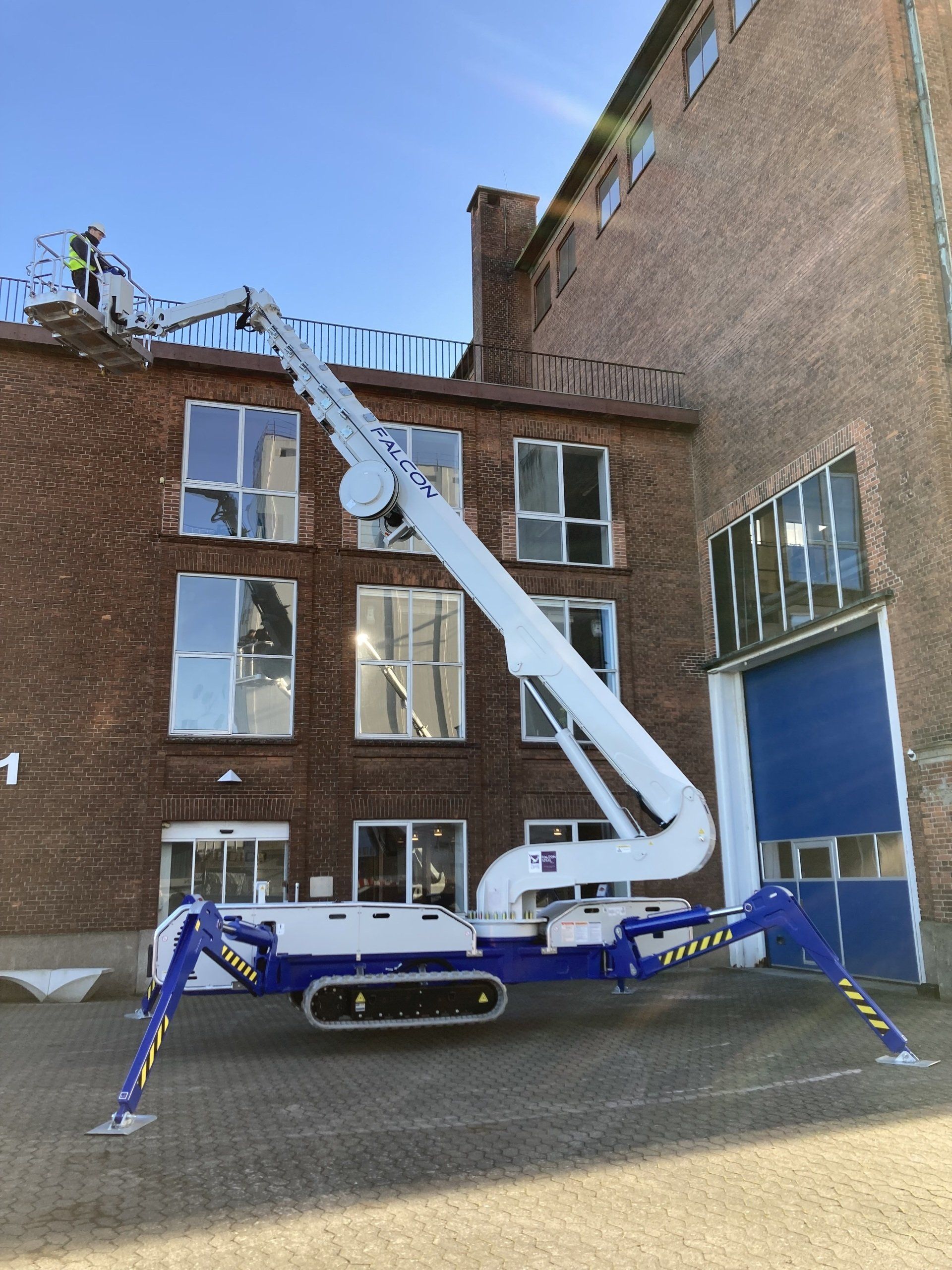

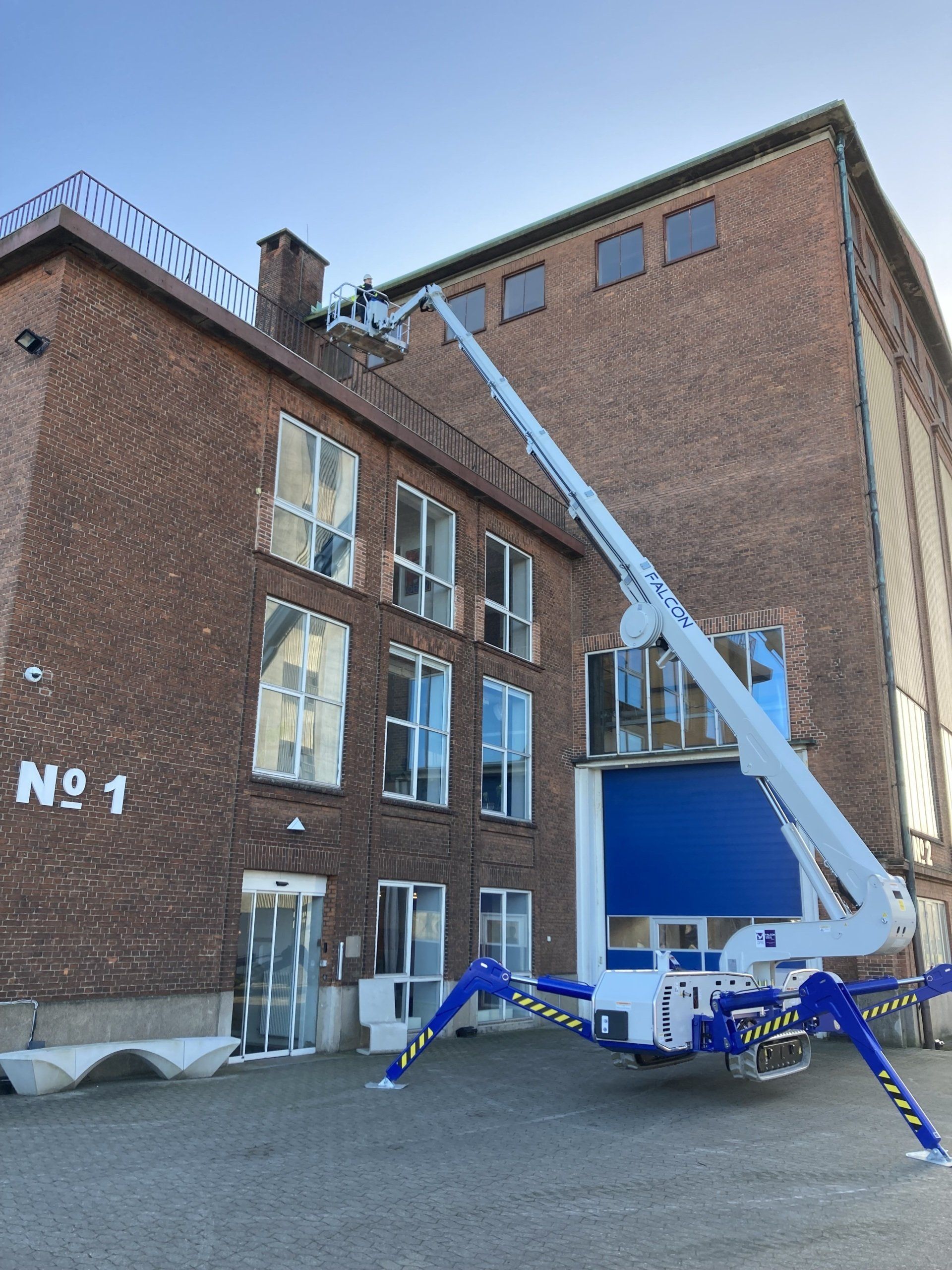

The Falcon Spider Atrium Crawler Lift FALCON 125XL Vario is an original Falcon Spider Lift with market leading features.


The Falcon Spider Atrium Crawler Lift 125XL Vario is capable of passing through a door opening only 4'8'' wide and 6'5'' high. New features such as XL-basket size and enhanced basket load of up to 990 lbs., automatic outrigger positioning, steering of outrigger and chassis from the basket, turns The Falcon Spider Atrium Lift series into a product category matching and exceeding today’s user demand in regards to speed, usability and safety.


The variable crawler version (VARIO) of The Falcon Spider Atrium Lift series is recognized by its impressive driving properties and user friendliness.

Falcon 125XL Vario

Model: 125XL Vario

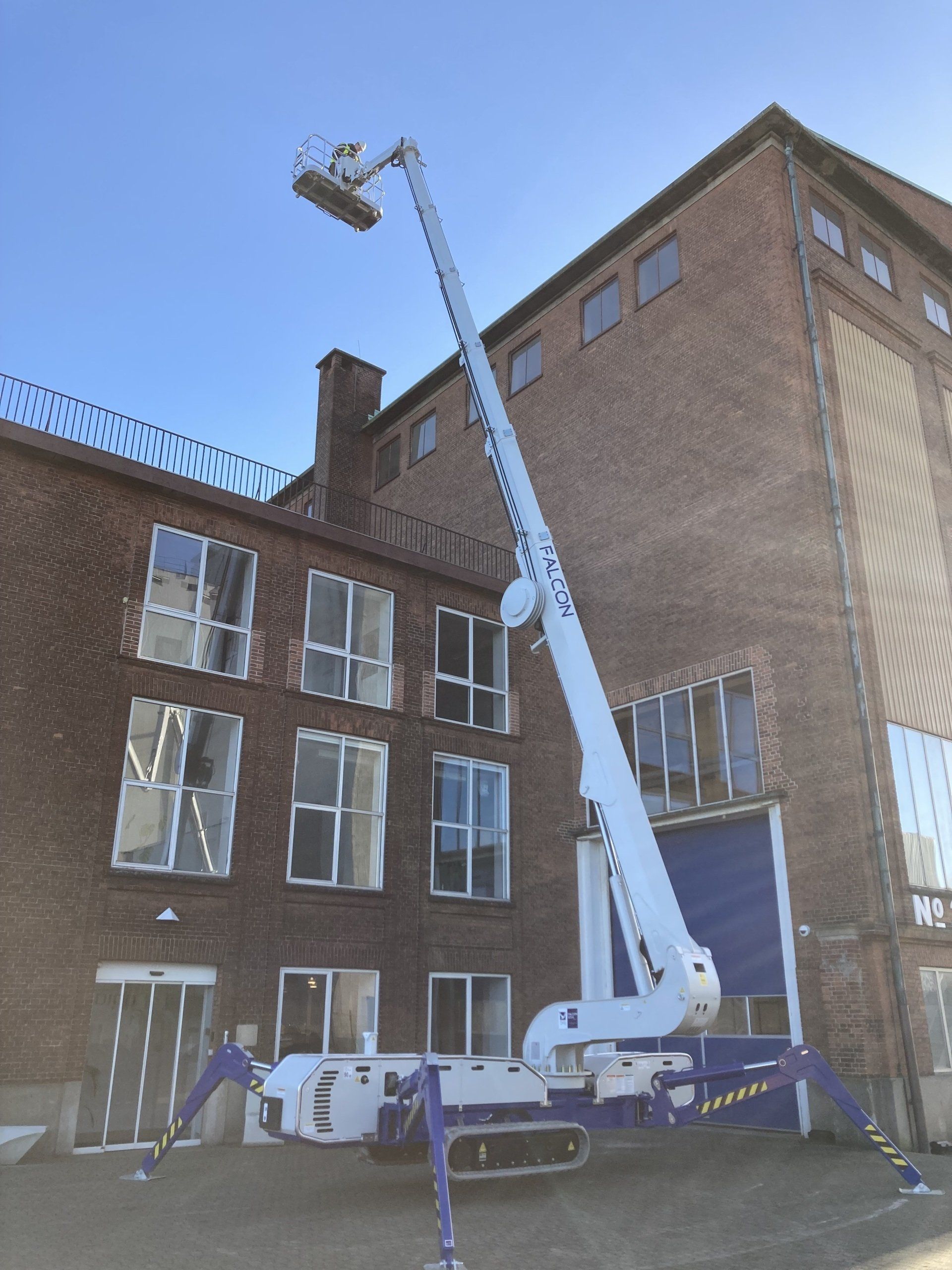

Working height: 125ft
Maximum reach: 44'3'' - 54'2''
Jib rotation: 200°
Basket load: 990 lb

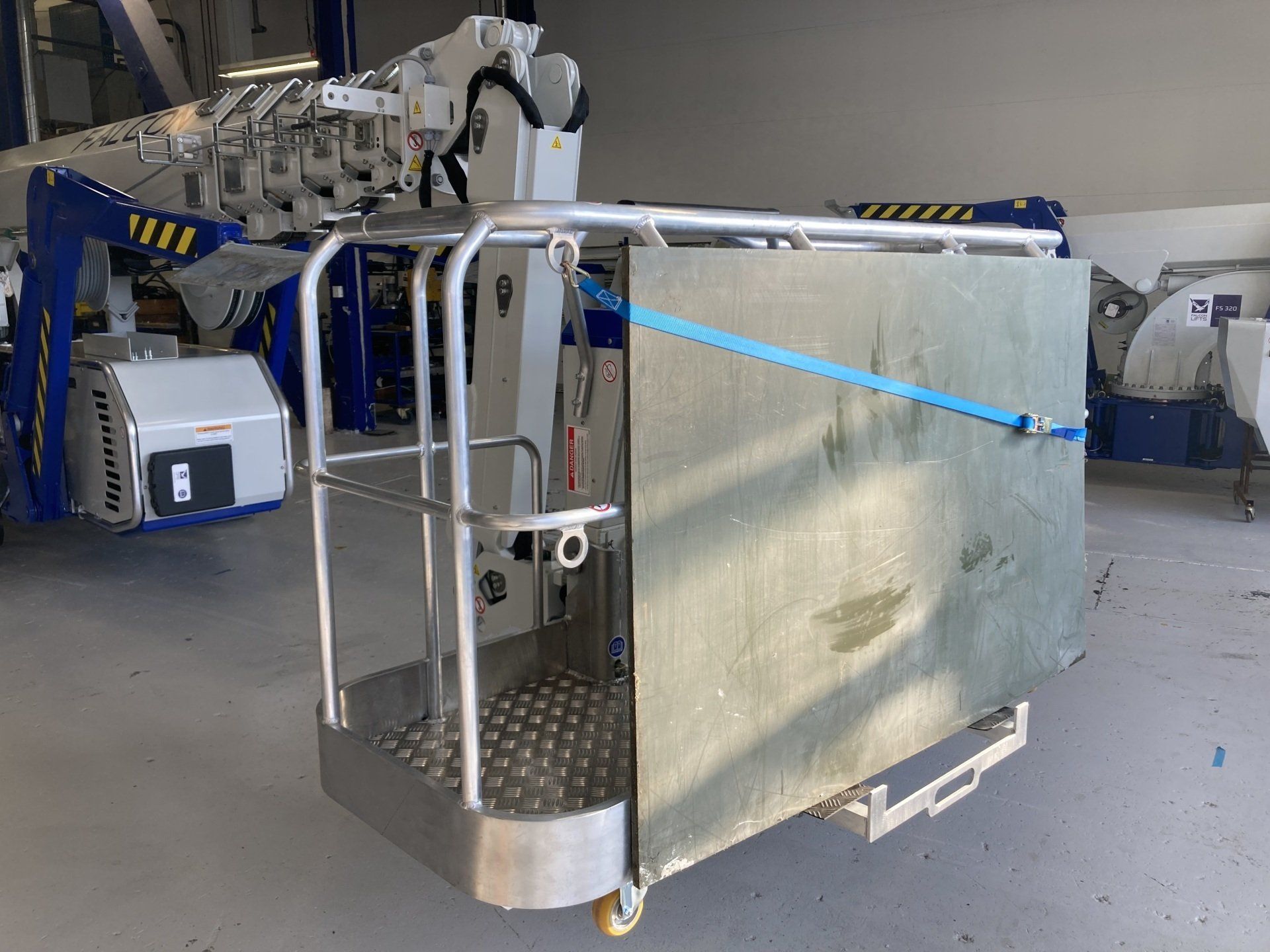

Aluminium basket: (2'7'' x 6'7'') )
Basket rotation: + / - 90°
Turret rotation: 380° Turret rotation: 380°
Dimensions (transport position)
Model: 125XL Vario
Total height: 6'5'' - 7'4''
Total length: 27'9''
Total width (min): 4ft4'8'' - 5'8''
Gradability (standard): 25° / 47%
Weight approx.: 18183 lb*

Falcon 125XL Vario equipment

Standard equipment:



  • Automatic stability & outreach control
  • Computer controlled (can-bus)
  • Proportional control of all functions
  • Self-propelled 2 speed selection
  • Battery powered with charger 180 Ah
  • Single jib
  • 380° turret rotation, with integrated stop
  • +/- 90° basket rotation
  • Ability to self-load onto trucks or trailers
  • Electronic checking of the power system (PLC)
  • Manual pump system for emergency lowering
  • Adjustable track width
  • Minimum width only 4'8''
  • X-large basket 990 lb capacity
  • Storage room in chassis with lock
  • Kubota diesel engine, 3 cyl. 18,5 kW/ 24,8 HP (Tier 4 / EU Stage V)
  • Wireless remote control of all functions
  • 110V AC power supply in the basket
  • Non marking crawlers
  • Individual setting of each outrigger
  • Falcon Service Tool (remote access via laptop)
  • EN 280:2013 CE Certified
  • ANSI Certified


Options:



  • Hazard lights kit (strobe lights. working lamp)
  • Protection kit (enhanced shields/cover)
    400V AC Phase 3, 7,5 kW/16A
  • Autosetting / Leveling
  • Special outrigger footplates
  • Special colour
  • Service tool
  • Anti entrapment system
  • Dust Cover for Storage
  • GSM module for remote access and monitoring
